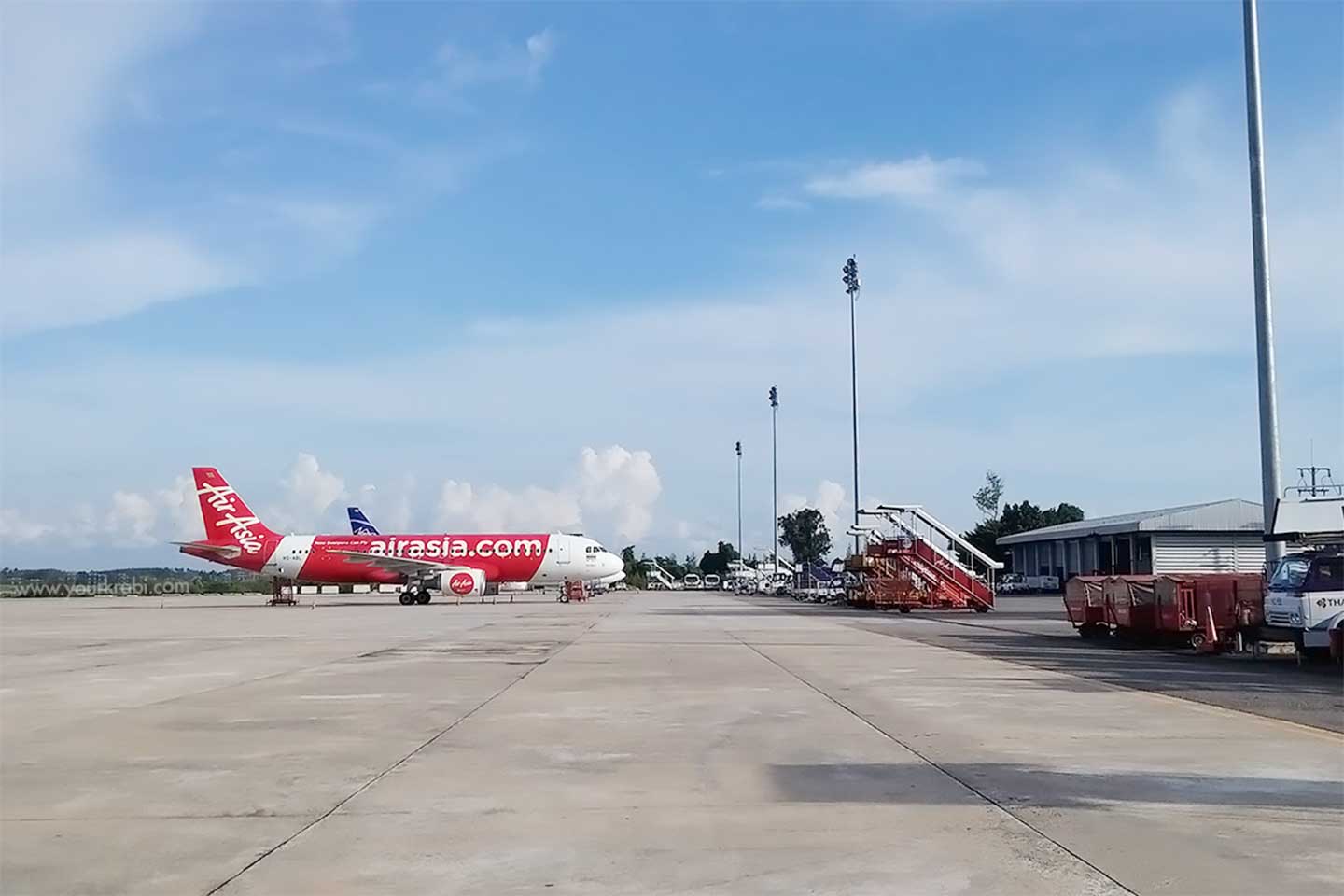

At the end of 2020, Thai customer purchased 380 sets of 1,000 watt HPS floodlight (High Pressure Sodium HPS floodlight) from our company for lighting at Thailand's Krabi International Airport . According to the size of the site provided by the customer and the special requirements of the aircraft for lighting, Yongsheng Lamp's professional technical team provided the customer with professional lighting solutions and design professional light distribution angles for 1000 watt HPS floodlight ( High Pressure Sodium floodlight). Due to the tight project schedule of the customer, it took one week to complete the production and air transport everything to the customer's destination, and provide professional technical guidance for customer installation.

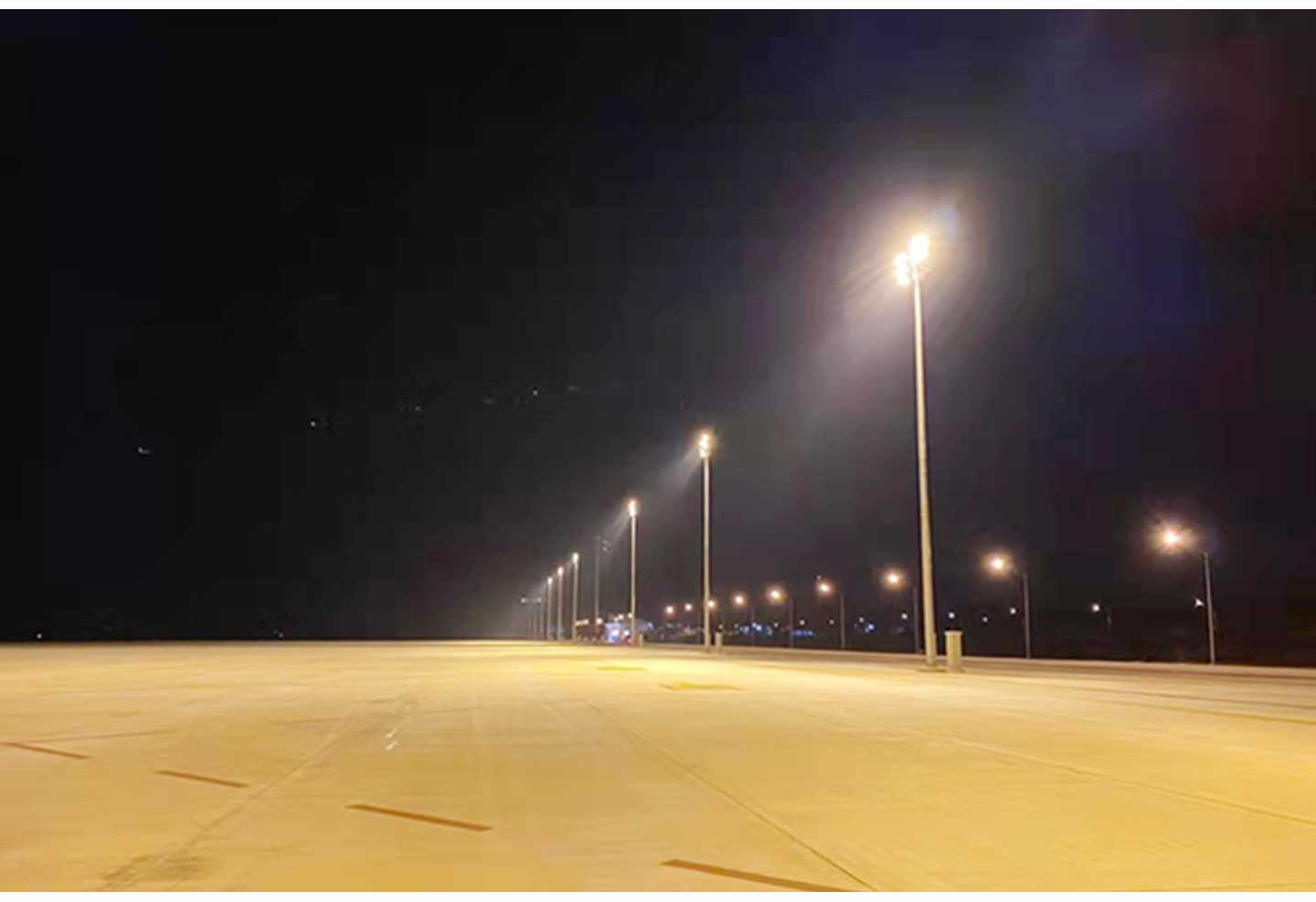

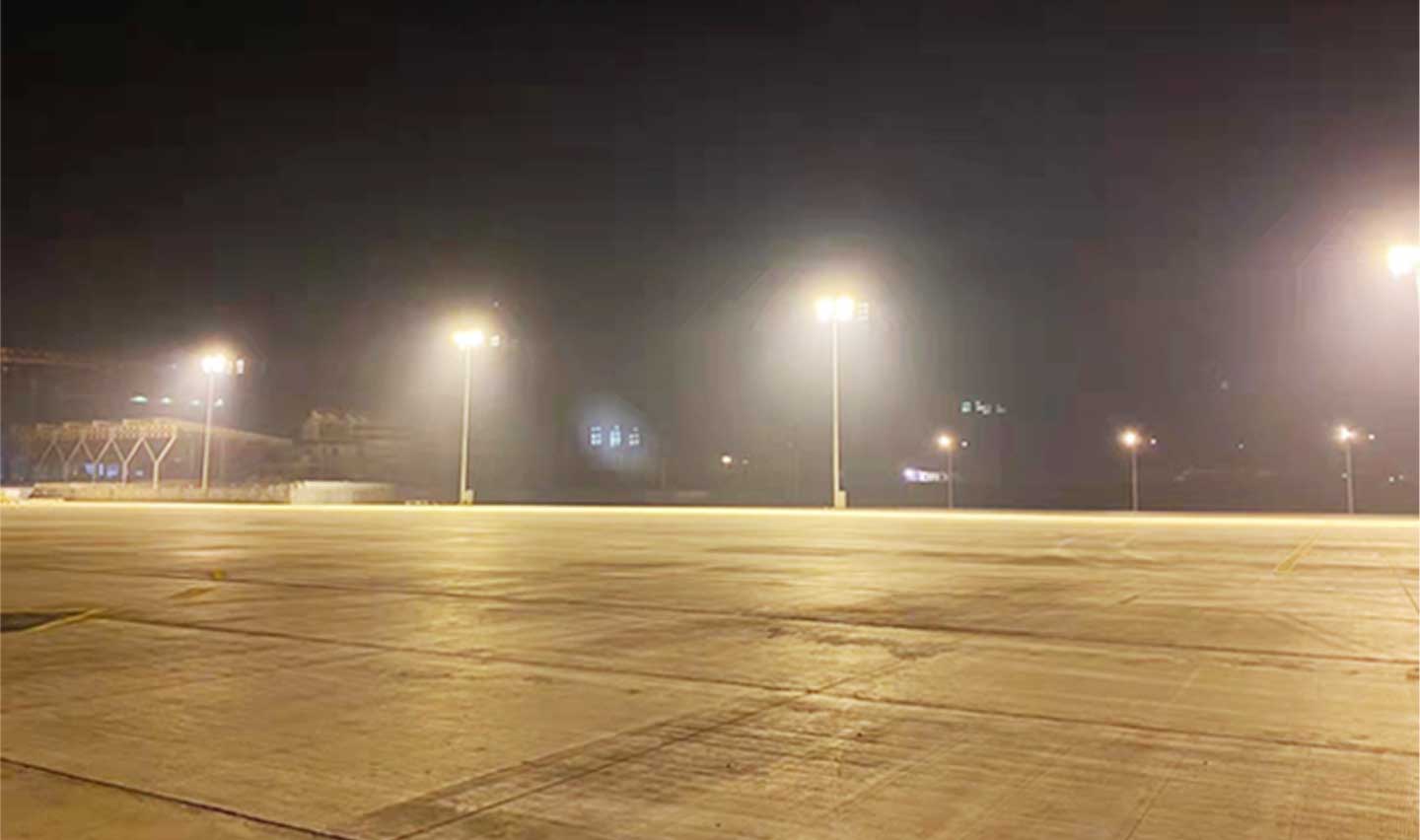

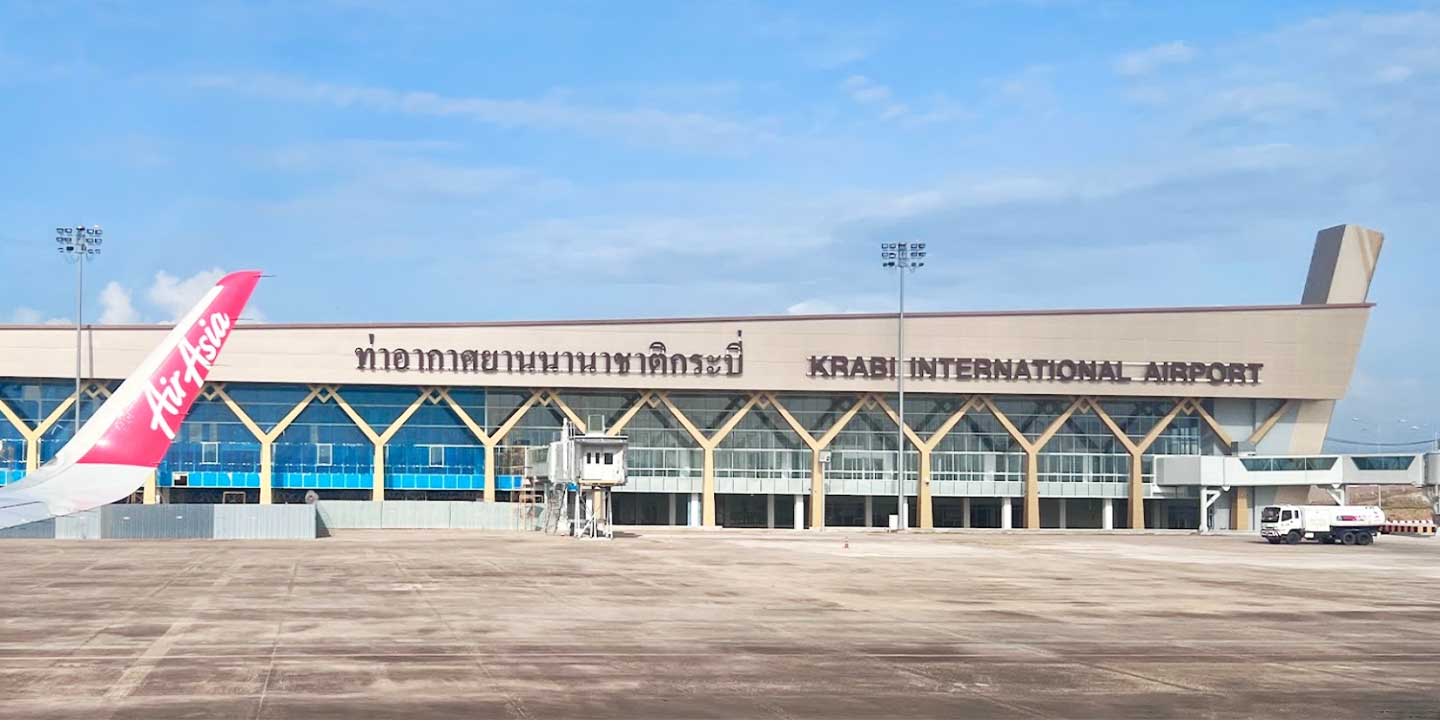

After the installation was completed, the customer enthusiastically helped to take a picture of the actual lighting installation. The overall lighting is uniform and there is no glare. Fully meet project standard requirements. The customer was very satisfied with this cooperation. Yongsheng lamp provided high-quality products and professional services, and said that they would expand cooperation with our company in the future.
Yongsheng lamp will continue to improve its own value and provide better products and services to every customer.

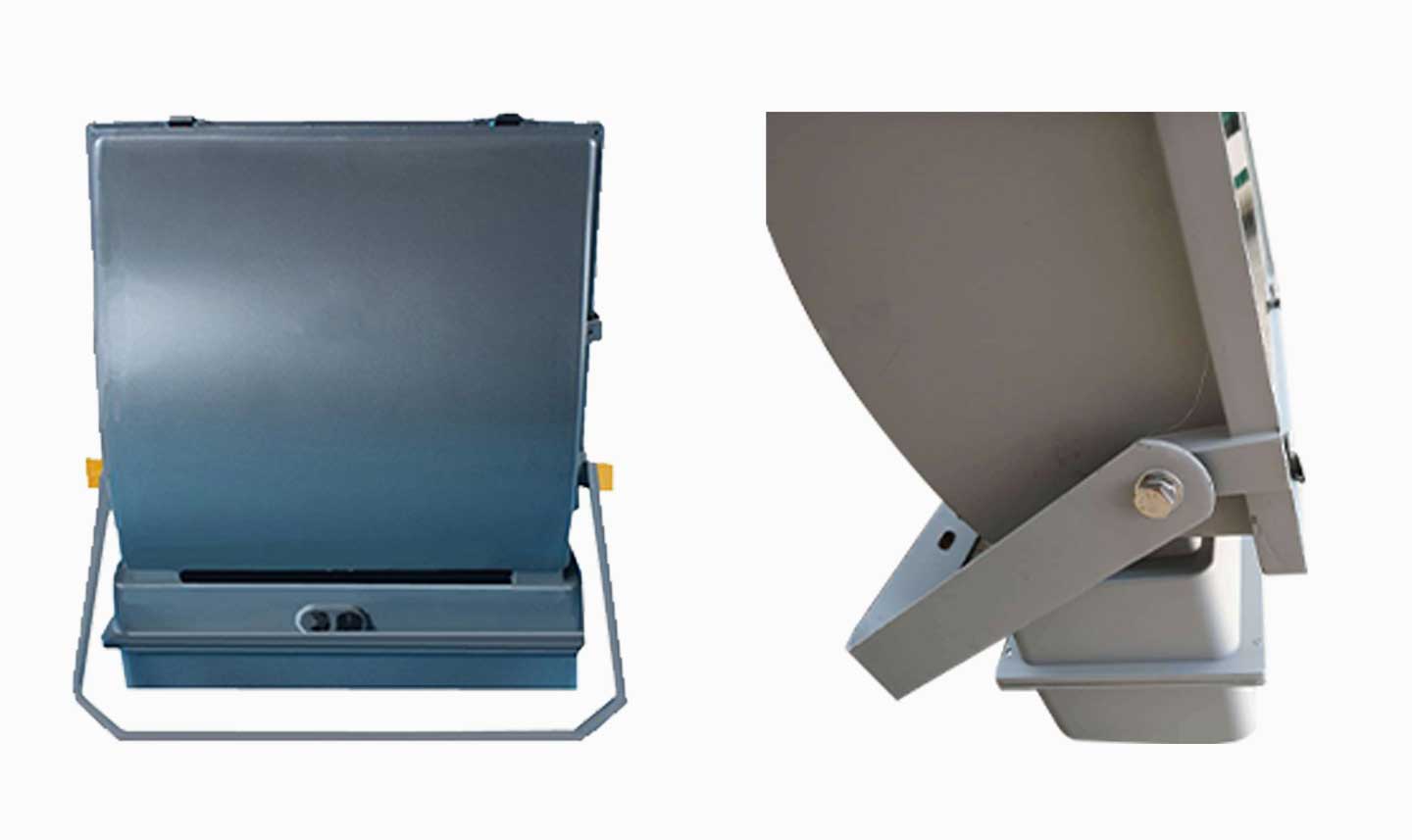

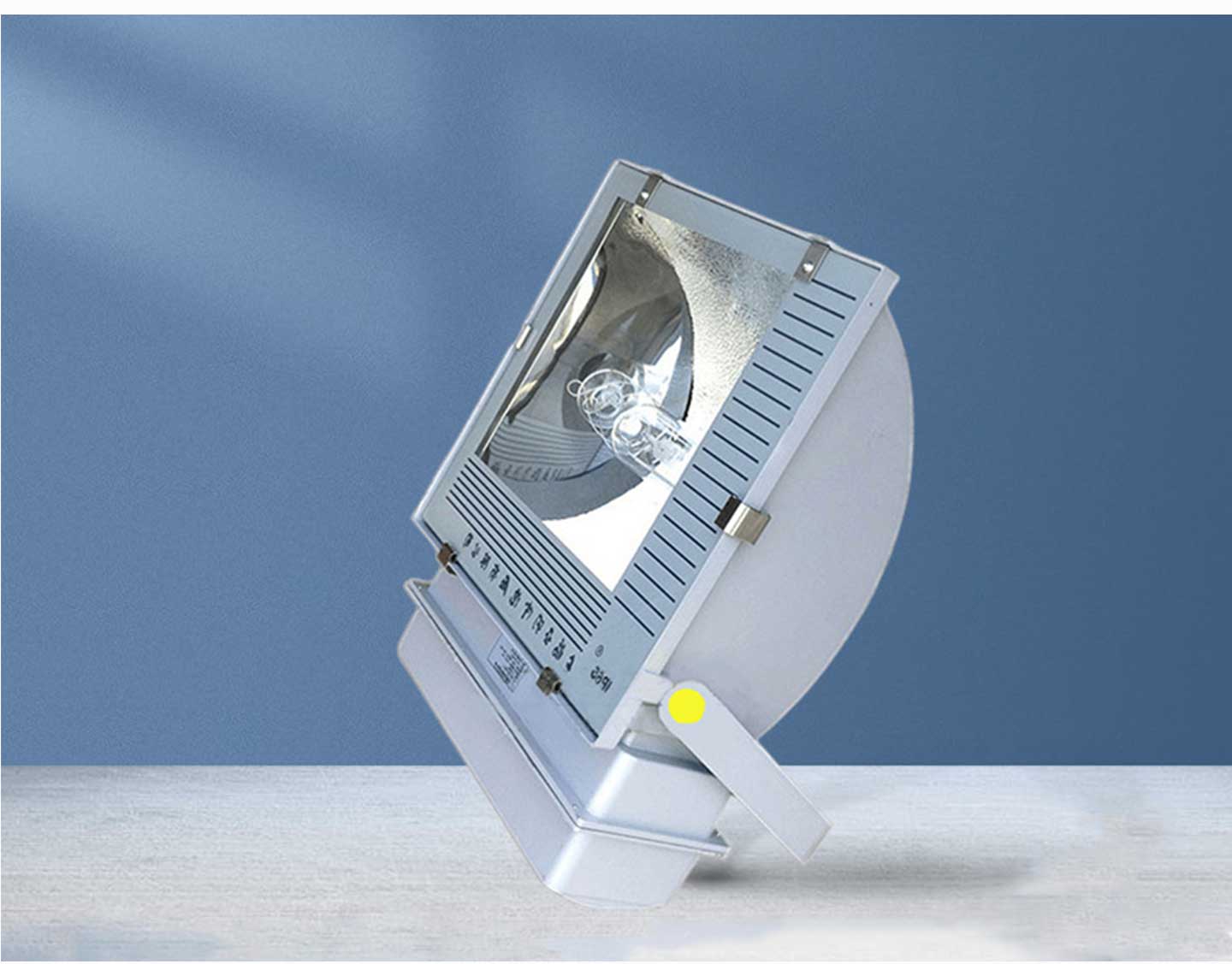

1000 watt High pressure Sodium Lamp

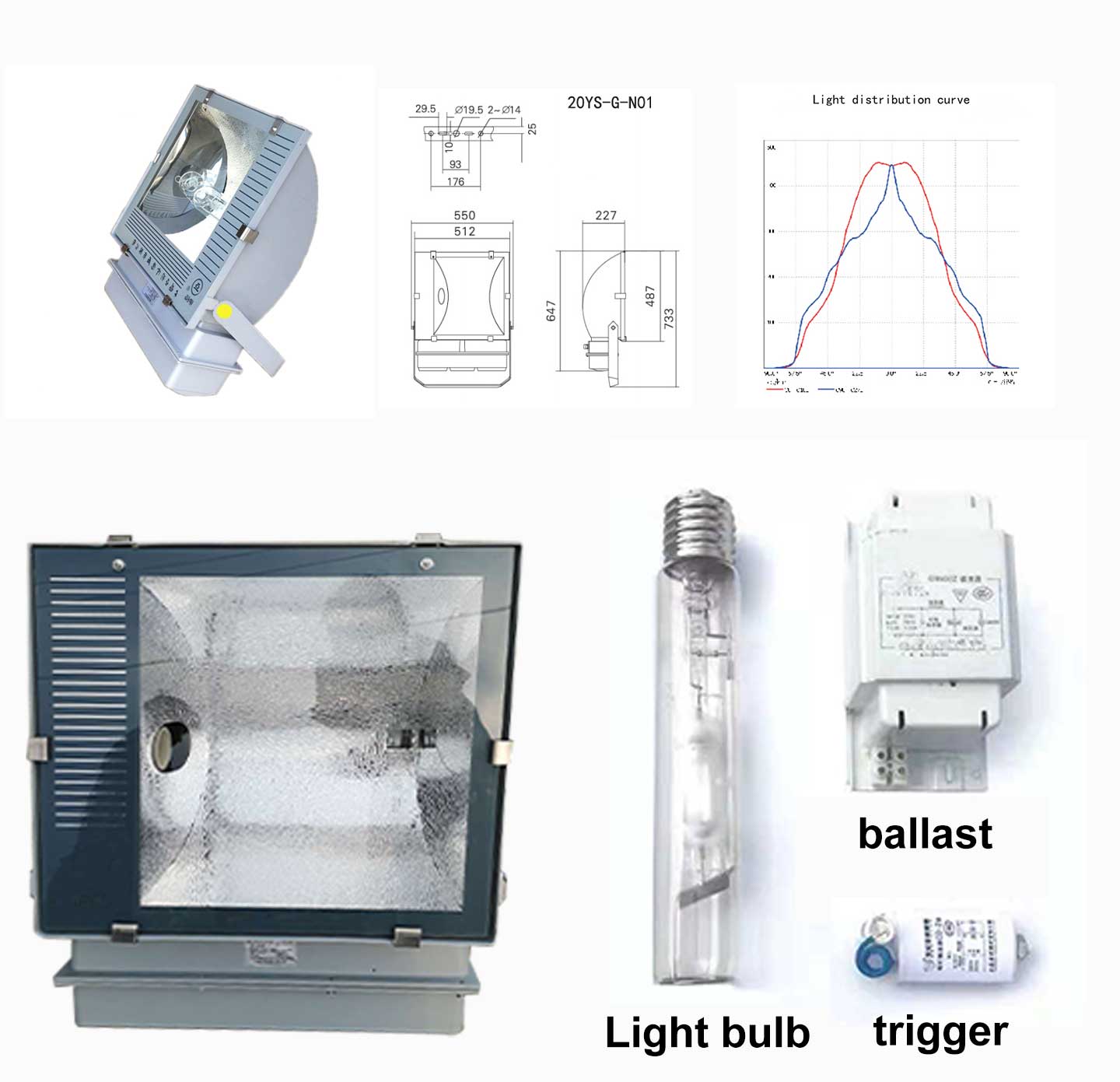

SPECIFICATION
|
Model |
20YS-G-N01-1000W |
||
|
Housing size （mm） |
647*550*227mm |
Packing (mm) |
675*735*325mm |
|
Lamp shell material |
Marine grade Die-casting Aluminium . The protective screen is made of top grade heat-resistant and impact-resistant toughened glass with high light transmittance |
Reflector |
Anodized aluminium Bi-symmetric distribution, narrow beam. |
|
Light source |
High pressure sodium lamp E40-1000W |
Rated power（w） |
1000W > 120000lm |
|
Power Factor |
>85% |
Capacitor model |
2*50μF/250v/ -40-105℃ |
|
Ballast Model: |
NG1000ZNT |
Trigger model |
CD-3a |
|
Working temperature（℃） |
﹣20℃～45℃ |
IP Grade |
IP65 |
|
The light color （K） |
Yellow 2000K |
Voltage Range（v） |
AC220V/50HZ |
|
Usinglife |
Min 18000 |
G.W.（kg） |
26.5 KG |
Product advantages of HPS :
a, High-pressure die-cast aluminum shell, the shell is electrostatically sprayed.
b, High-purity aluminum reflector, equipped with symmetrical (b) or non-symmetrical (a) light distribution system.
c, heat-proof and impact-resistant tempered glass.
d, High temperature resistant silicone rubber sealing ring, with good sealing performance and superior anti-corrosion performance.e, the emitter has good diffusion and precise beam

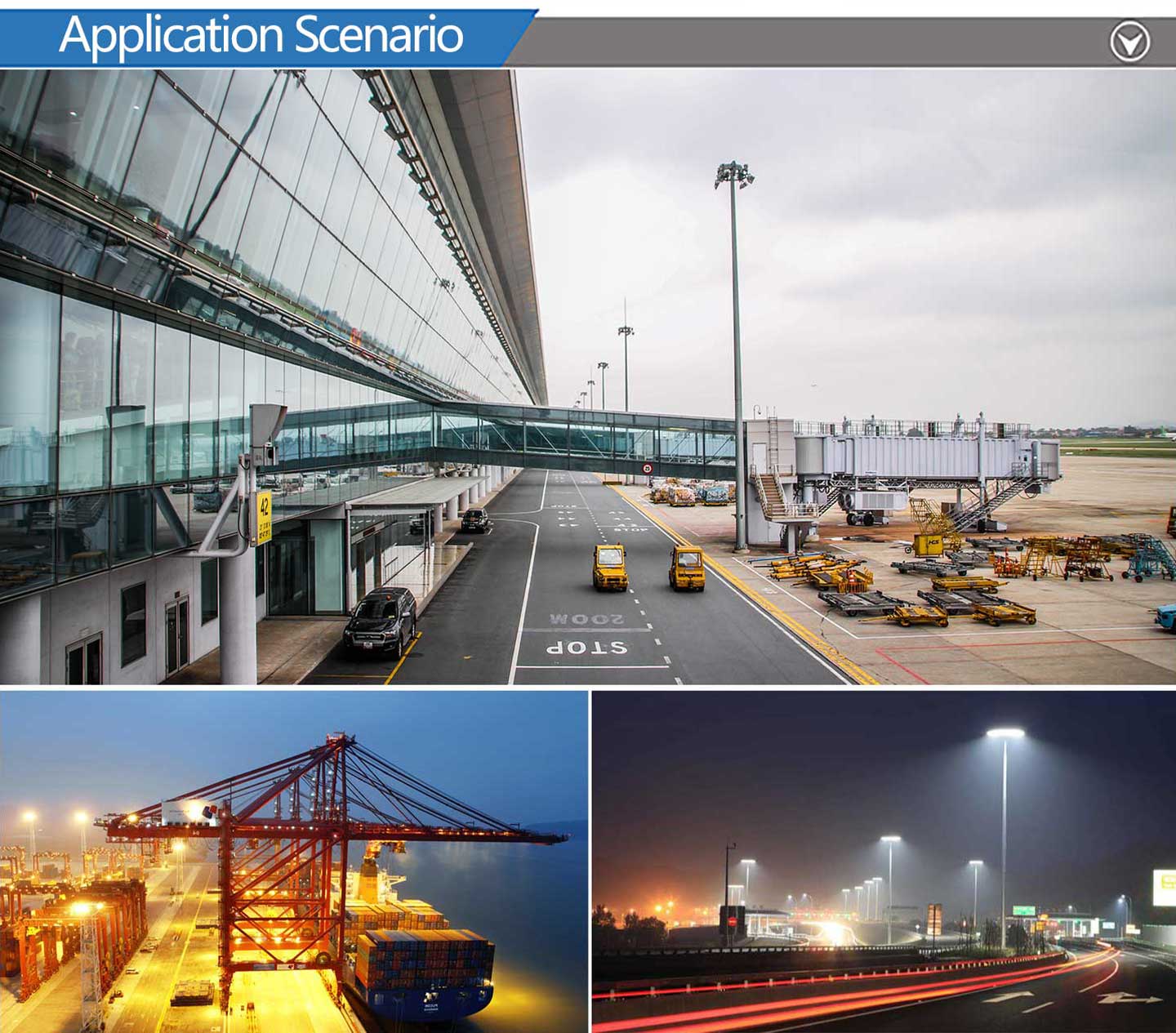

f, suitable for stations, docks, squares, construction sites, especially for floodlight photography of facades of high-rise buildings.
