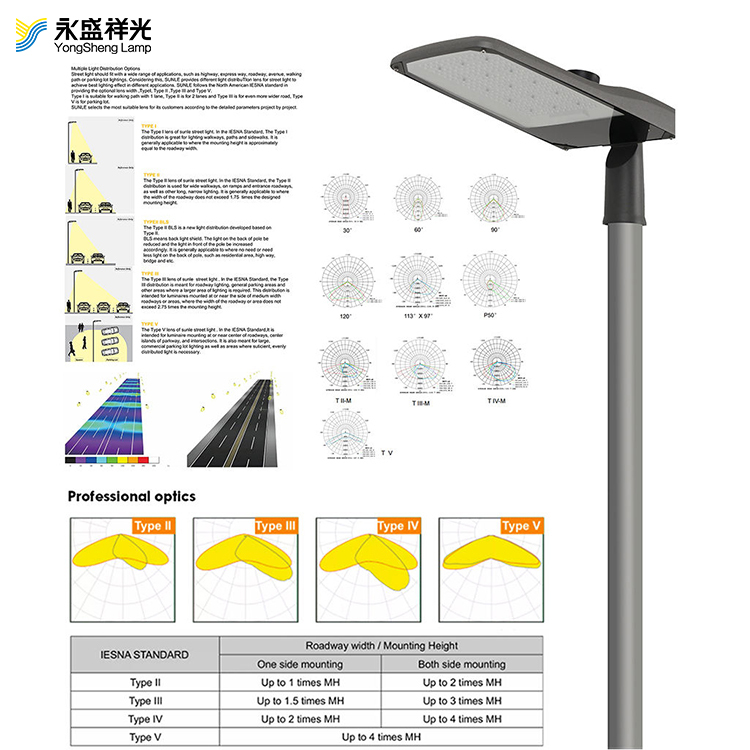

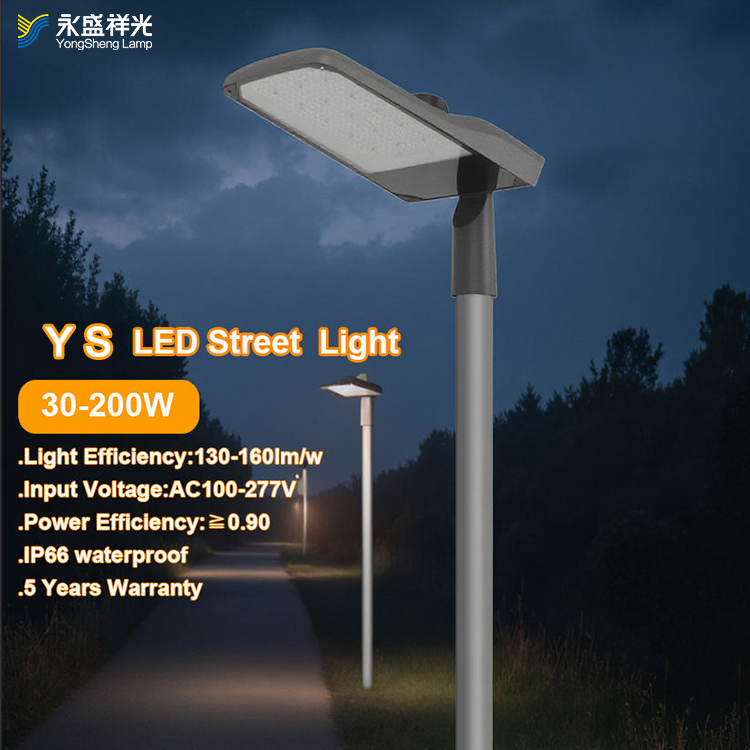

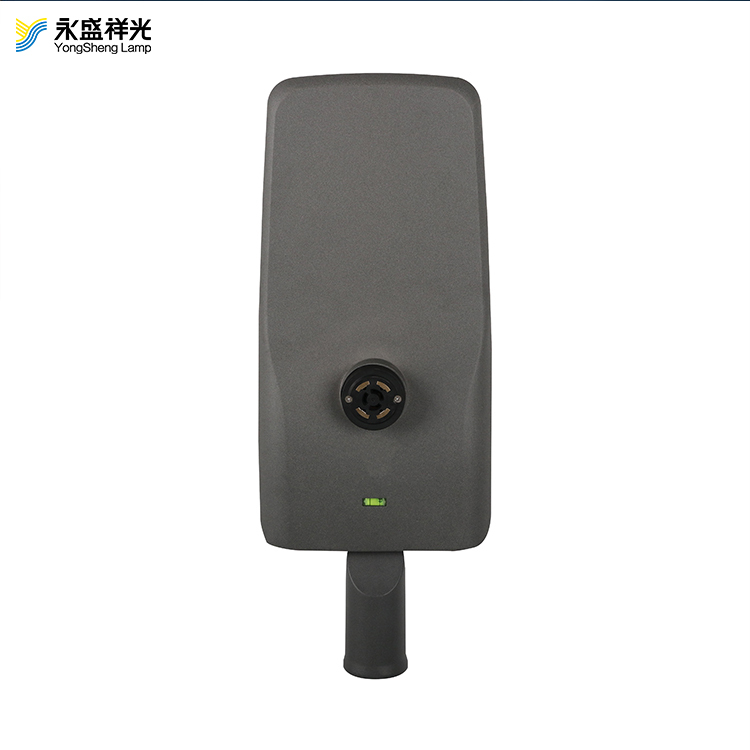

Application:Road，Input Voltage(V): AC100-277V，IP Rating:IP66，Light Source:LED，Lamp Luminous Efficiency(lm/w):130-160，Light Distribution Shape:Type II, Type III, type v，Color Temperature(CCT): 4100K (Neutral White)，Color Rendering Index(Ra):70，Lamp Body Material: Aluminum Alloy，Shade material:Glass，Lifespan (Hours): 50000，Warranty(Year): 2-5years，Control Method: Motion Sensor，Power Supply: AC，Lighting solutions service，Lighting And Circuitry Design, Dialux Evo Layout, Litepro Dlx Layout, Agi32 Layout, Auto Cad Layout, Onsite Metering, Project Installation，Material: Aluminium，Power: 115-150W，Lamp Luminous Flux(lm): 22500，Product Weight（kg）: 3.6，Working Temperature(℃): -20-55，Power Factor:>0.95，IK Level: IK09，Surge Voltage: 6KV/10KV，Power Frequency: 47-63Hz，Color consistency in level:Max.6SDCM，Energy efficiency Class:D
THE STRENGTH DISPLAY OF COMPANY
|
Eternal Professional Strength Commitment 1,It can be customized according to customer needs, NO design fee, can be customized according to customer drawings; 2,If there is any discrepancy in the material, parameters, quality, function,appearance, structure, etc. marked by the company's products, we unconstitutional re-tum and exchange and bear the roundup freight; 3, Since purchase Yongsheng's product even if one piece, Yongsheng's professional team will take care of it to the end, from installation, use.maintenance, to function upgrade and expansion, and lifelong tracking maintenance services. |
PROFESSIONAL R&D DESIGN TEAM
___
APPEARANCE DESIGN·3D STRUCTURAL DRAWING
PRODUCTIONDRAWNG·CNCTYPESETTING
COMPANY DEVELOPMENT PHILOSOPHY
|
1,Since the establishment of the factory, the company has always adhered to the concept of keeping up with the development of the times, standing at the forefront, and following the trend, and armed it’s mind with the purpose of R&D design, production and installation, and one-stop service. 2,From the material selection of the pole and light source, the installation of intelligent products of the internet of Things, the appearance and the environment, the combination of modem intelligent production equipment and processing technology, professional and perfect management and service system, etc, every product developed and produced by the company,all demonstrate the strength of YongSheng industry. |
Product Description
|

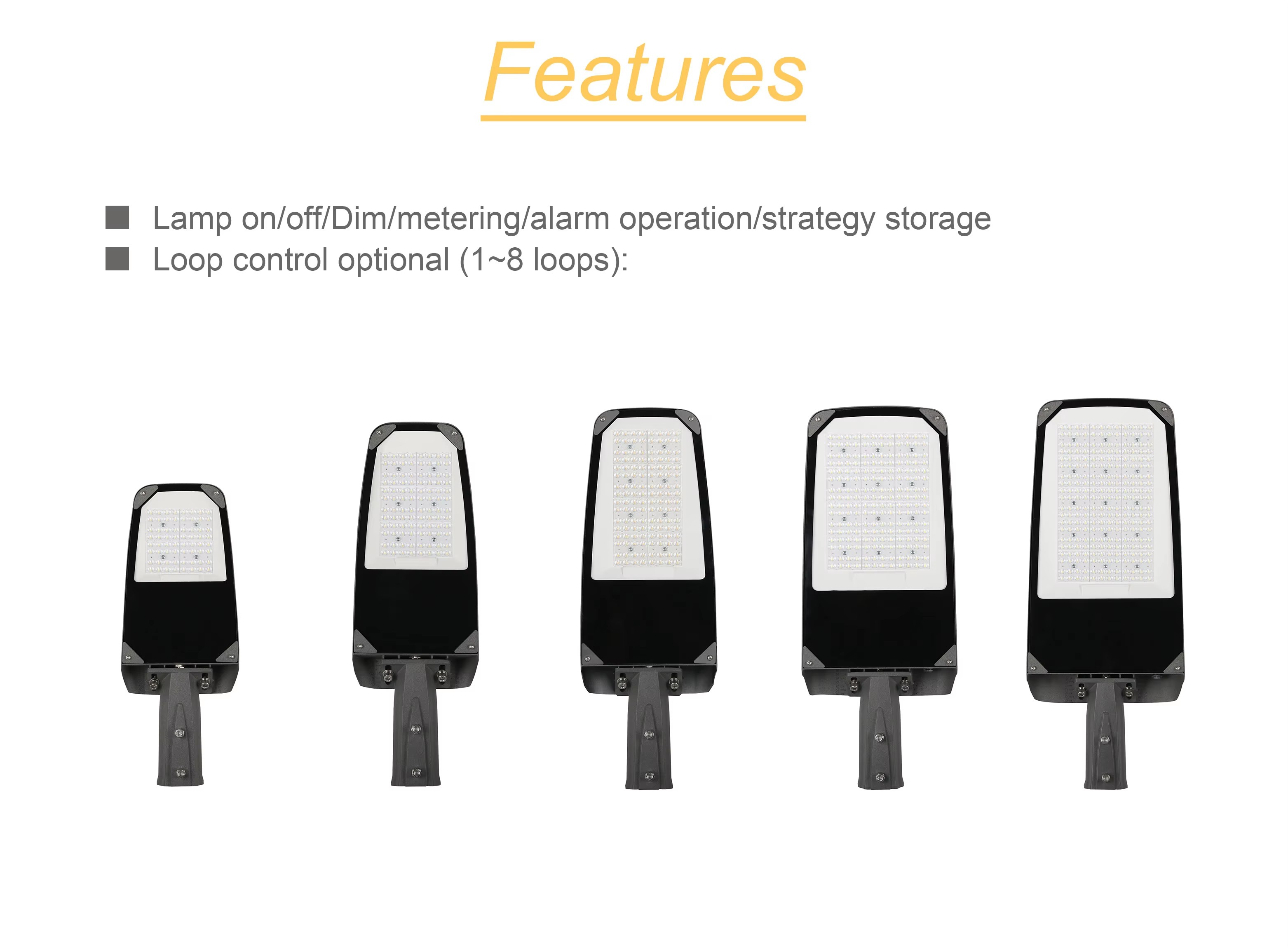

Model NO. |
Power(W) |

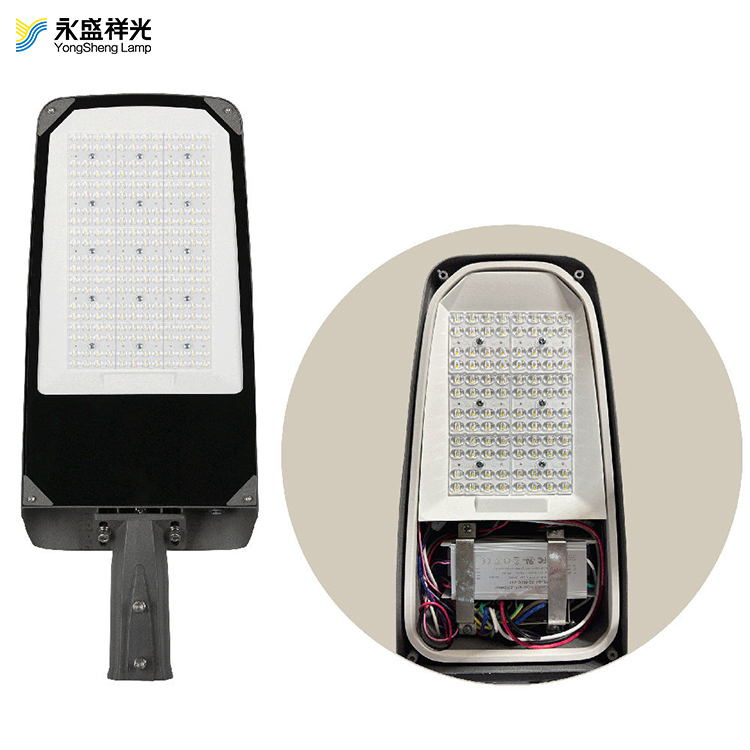

Light Source |
LED QTY (PCS) |
Lens(PCS) |
CCT(K) |
Lumen (lm/W) |
CRI |
|
13-30W |
30 |
3030(5050 |
64/24 |
4 |
4000K
|
130/160 |
>70 |
|
13-40W |
40 |
64/24 |
4 |
130/150 |
|||
|
15-50W |
50 |
96/36 |
6 |
130/160 |
|||
|
15-60W |
60 |
96/36 |
6 |
130/150 |
|||
|
110-80W |
80 |
96/48 |
8 |
130/160 |
|||
|
110-100W |
100 |
128/48 |
8 |
||||
|
115-120W |
120 |
192/72 |
12 |
||||
|
115-150W |
150 |
192/72 |
12 |
||||
|
120-180W |
180 |
240/90 |
15 |
||||
|
120-200W |
200 |
240/90 |
15 |
1.Independent research and development, simplified European design, high cost-effectiveness; 2.Streamlined design, smaller drag coefficient, and typhoon resistance;

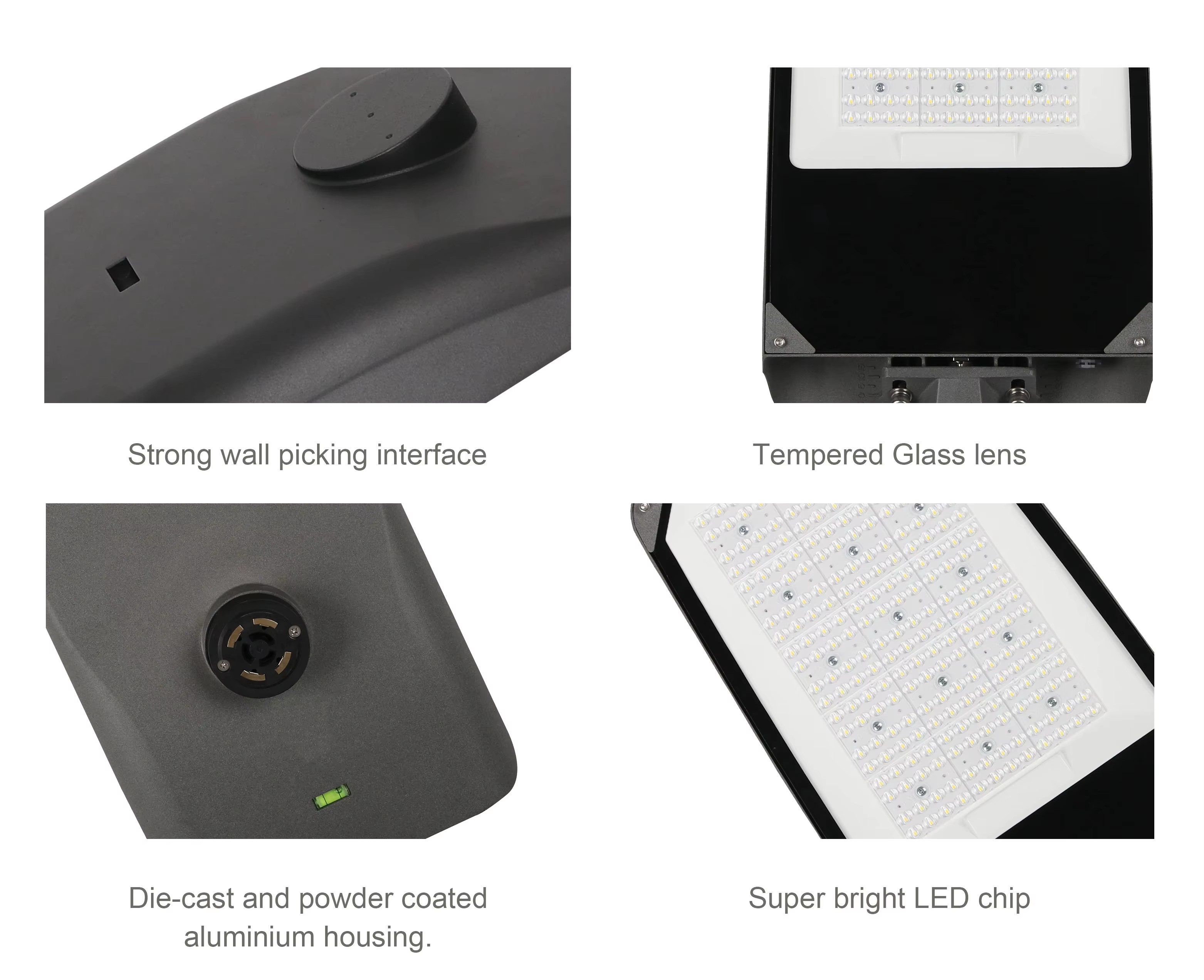

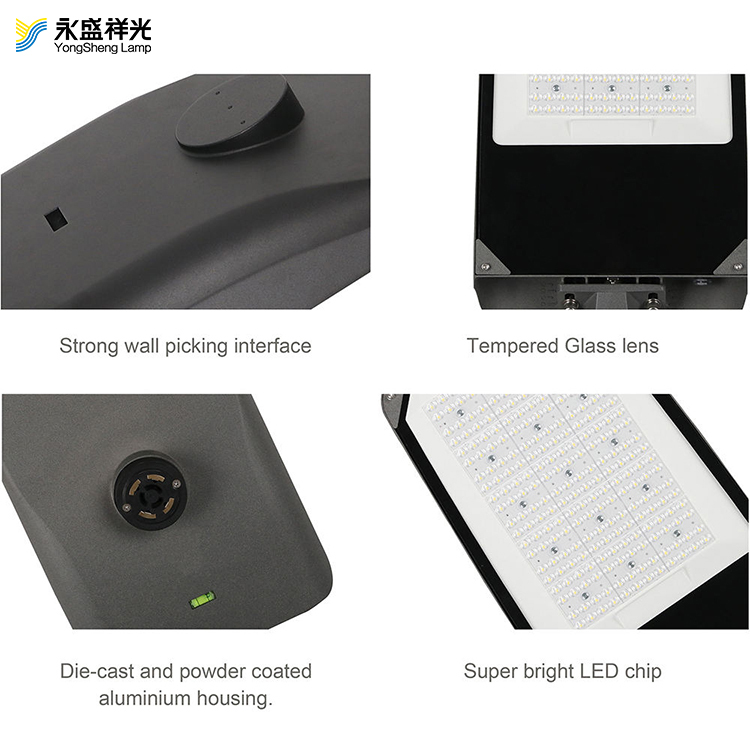

3.95% aluminum participatesin heat dissipation,significantly increasing the effective area and achieving IP66 waterproof level;
