 Street Light Features

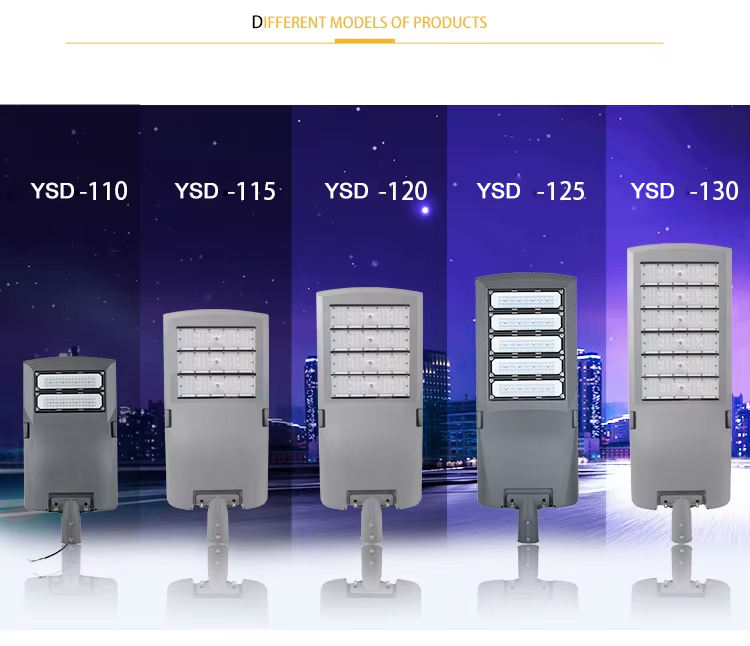

1. Independent research and development, simple European style modular LED street light, it can be matched with various modules of national standard size, covering from 100w-400w module LED street lights;
2. Streamlined shape, the frame of the whole lamp and the main body of the power supply cavity are integrated by die-casting, less wind resistance, stronger ability to carry typhoons, IP66 waterproof level;

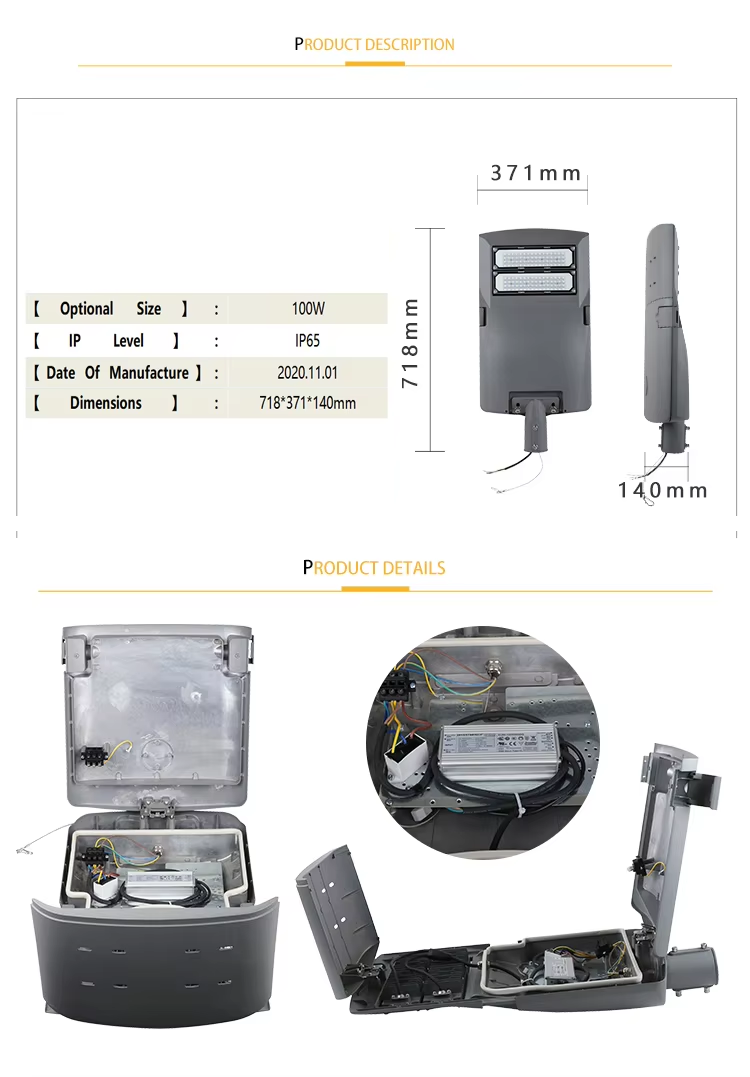

3. Open the power supply cavity and dust cover on both sides without tools, and the LED national standard module and power supply can be replaced with a screwdriver, which is more convenient for disassembly and maintenance;
4. Excellent natural convection design concept, chimney convection structure, modular structure, and significantly increase the effective heat dissipation area, avoid the formation of heat accumulation, and significantly improve the heat dissipation performance;
5. The porous dust cover achieves the optimal balance between the heat dissipation and protection modules, and the curved back is not easy to accumulate water, dust and snow, and has a strong self-cleaning ability;
6. The standard national modules are universal and can be maintained with electricity (power on). Each module can be replaced and maintained independently. The three specifications of private mold glass + LED lens module can be matched at will, making light light distribution more convenient and preventing the LED lens from accumulating dust and yellowing;
7. There are NEMA and ZHAGA interfaces on the top and ZHAGA interfaces on the bottom. The power supply cable and the dimming cable have independent inlet holes, which can increase the radar motion sensor and photocell control system;
8. The arm of the lamp holder can be adjusted by up-down 15 degrees, and it can be installed vertically at 90 degrees;

Conjoined lens plan
